Introduction

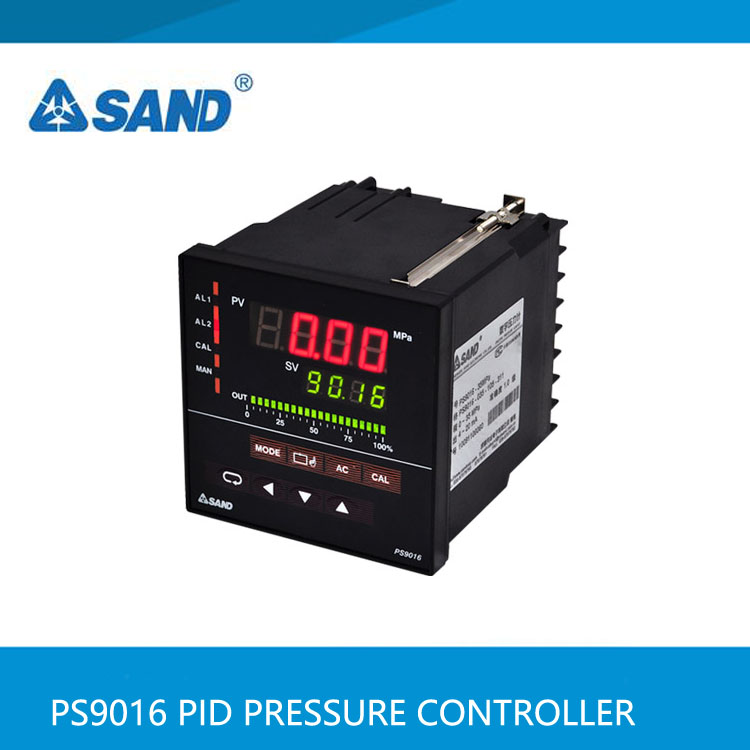

PS9016 series programmable intelligent digital pressure controller is the latest brand new pressure instrument. It is especially suitable for melt pressure measurement and control areas with its superior compatibility and cost performance. And it can be used withPT series melt pressure sensor / transmitter to support the high-temperature melt, fluid, and the accurate measurement of gas pressure perfect control widely in petrochemical, textile and chemical fiber, plastics, rubber, non-woven fabric, machinery and other equipment industries. It is with a full-featured, high reliability, stability, appearance, and strong anti-interference characteristics to ensure the long-term stability of the system work.
Specifications
ressure range
0~1500bar;0~20000psi
Power supply
85~265VAC;24VDC;110VAC;220VAC;240VAC
PID output signal
0~5V,1~5V,0~10V,0~10mA,0~20mA,4~20mA(Programmable )
Alarm
Two-way upper and lower limited relay alarm
Relay contact output
250VAC,5A
Input signal
2.0mV/V,3.33mV/V,0~20mA,4~20mA,0~10V,0~5V,1~5V
Communication
RS485
Mailing Address
0001~0255
Communication baud rate
2400bps,4800bps,9600bps,19200bps,38400bps
Inner resolution
32000
Ambient temperature
-10 C~50 C
Ambient humidity
<80%RH
